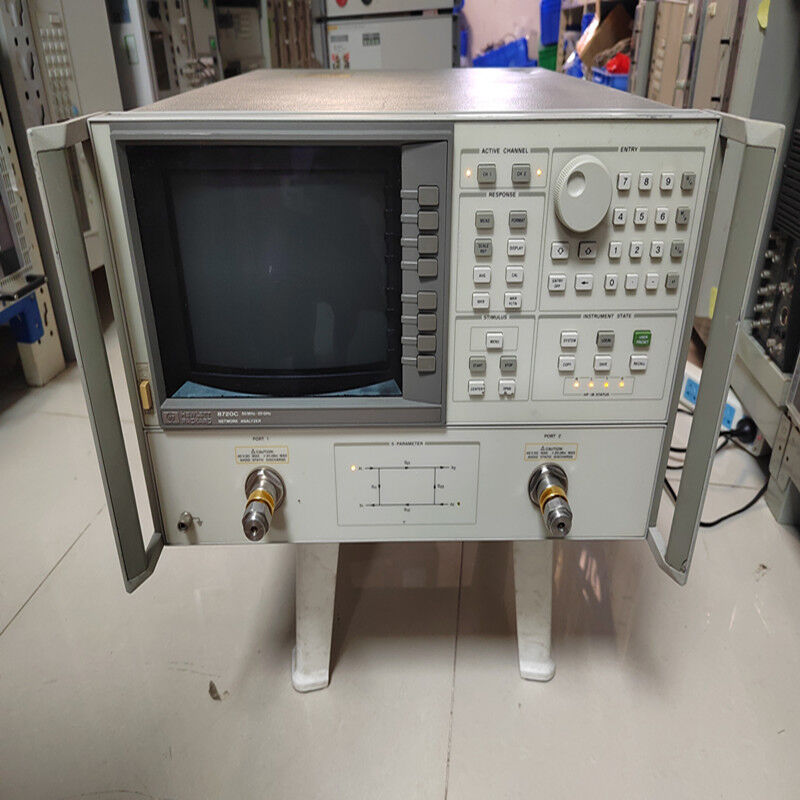

Keysight (Agilent) 8720C RF Vector Network Analyzer, 50MHz-20GHz

Company Information:

Meigaolan is a test and measurement solutions and production suppliers, founded in 2003 and located in Shenzhen,China.

Our highly skilled Sale Representatives can assist you with all of your

new and refurbished test equipment needs, providing EMC test solutions

and building your Anechoic chamber.

Meigaolan have 6 branch offices,test and repair labs and stocks all round China(Shenzhen,Shanghai,Wuhan,Chengdu,Xi'an,Kushan). Viet Nam branch company established in 2023 to provide more close service to our customers.

Keysight Agilent 8720C Microwave Network Analyzer 50MHz To 20GHz

Description of Keysight Agilent 8720C

The Keysight 8720C vector network analyzer characterizes RF and microwave components down to 50 MHz and up to 20 GHz. This analyzer includes a fast-sweeping synthesized source, S-parameter test set, tuned receiver, and large color display in a single package. The Keysight 8720C is an ideal choice for cost- and space-conscious engineers in research and development, manufacturing, incoming inspection, or quality assurance.

Overview and Features of 8720C Microwave Network Analyzer

• Fast-sweeping built-in synthesized source with optional 1 Hz frequency resolution
• Integrated switching test set measures all four S-parameters with a single connection
• Vector accuracy enhancement
• Optional time domain capability computes and displays response versus time or distance
• Optional solid state switch allows simultaneous measurement of forward and reverse parameters and continuous update for all four s-parameters as required for two-part error correction
• Productivity is enhanced with pass/fail testing, direct printer/plotter output of results, advanced marker functions, and save/recall of test configurations.
• Two independent display channels for simultaneous measurement of reflection and transmission characteristics

The Agilent 8720C Option H85 is a modified version of the standard Agilent 8720C Vector Network Analyzer.

The purpose of Option H85 is to provide high-power measurement capability. This document describes Option H85 operating features and performance specifications that differ from those of the standard 8720C Network Analyzer.

Refer to the 8720C User’s Guide (Agilent Part No. 08720-90157) for all other features and specifications.

The 8720C Option H85 has three different operating configurations:

• Bypass

• Single Connection Multiple Measurement (SCMM)

• High Power All three configurations have a frequency range of 50 MHz to 20 GHz.
