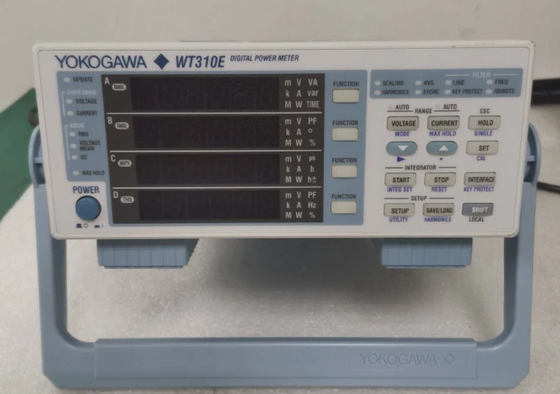

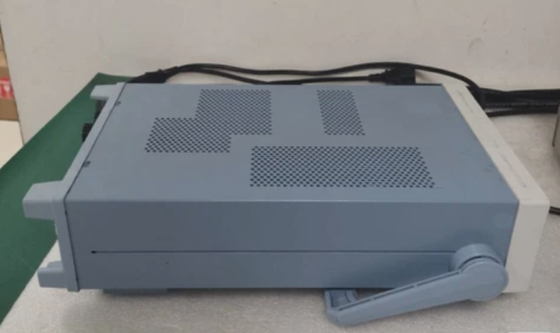

Yokogawa WT310E Single-Phase Digital Power Analyzer Power Meter

Description of Yokogawa WT310E Power Meter

The compact, 1-phase power meters of the WT310E(H) series have a basic accuracy of ±(0.1% of reading + 0.05% of RMS range) and are ideal for precise measurement of power consumption of electrical devices, as well as for energy efficiency and energy saving studies. The lowest currents, for example, can be measured with the WT310E from 50 µA with specified accuracy.

• Simultaneous harmonic analysis with high bandwidth.
• Automatic adjustment of the data update rate.
• Automatic range switching for integrating measurements.
• Basic accuracy for power measurements (50/60 Hz): ±(0.1% of the measured value + 0.05% of the effective value measuring range).
• Frequency bandwidth WT310EE: DC, 0.1 Hz...100 kHz; WT310EH: DC, 0.1 Hz...20 kHz.
• Current measurement range direct input WT310E: 12 measuring ranges/5 mA...20 A; WT310EH: 6 measuring ranges/1...40 A.
• RMS voltage ranges: 6 measuring ranges/15...600 V.
• External sensor input EX1: 2.5/5/10 V; EX2: 50/100/200/500 mV/1/2 V.
• Signals with crest factors up to 300 measurable in all ranges.
• Simultaneous measurement of RMS, MEAN, and DC voltage.
• Frequency measurement: 2 channels (voltage and current).

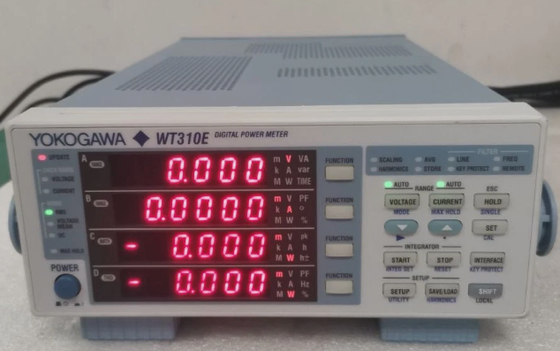

• 4x 7-segment LED displays
• Sampling rate 100 kS/s (16 bit).
• Data update rate 100/250/500 ms/1/2/5/10/20 s, Auto.
• Harmonics analysis incl. THD calculation up to the 50th order available (option -G5).
• Automatic range setting in integration mode.
• Comparator function.

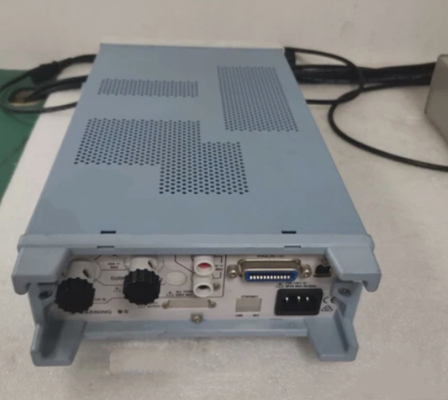

• Interfaces: USB standard, GPIB/IEEE488 or RS232 (selectable), Ethernet (Modbus/TCP) available (option -C7).
• Free PC application software WTViewerEfree for parameterization, control and data acquisition included in the scope of delivery.

Features of Yokogawa WT310E Power Meter

• Model	Description
  WT310E	Single-phase digital Watt meter. Basic accuracy (50/60 Hz): ±(0.1% from measured power value + 0.05% from RMS measurement range), 6 voltage ranges 15...600 VRMS (Crest factor 3), 12 current ranges 5 mARMS...20>ARMS (Crest factor 3). Measurement of VRMS, Vmean, VDC, Vpeak, ARMS, ADC, Apeak, W, VA, var, cos phi, deg, ±Wh, ±Ah, CF, Hz and math. functions Standard with integrator (up to 10,000 h), measurement value memory, max. value memory, filter and frequency counter. Standard with USB interface, GPIB/IEEE488.2, or RS232C interface (pease select), test certificate.
  WT310EH	Single-phase digital Watt meter. Basic accuracy (50/60 Hz): ±(0.1% from measured power value + 0.05% from RMS measurement range), 6 voltage ranges 15...600 VRMS (Crest factor 3), 6 current ranges 1 ARMS...40 ARMS (Crest factor 3). Measurement of VRMS, Vmean, VDC, Vpeak, ARMS, ADC, Apeak, W, VA, var, cos phi, deg, ±Wh, ±Ah, CF, Hz and math. functions Standard with integrator (up to 10,000 h), measurement value memory, max. value memory, filter and frequency counter. Standard with USB interface, GPIB/IEEE488.2, or RS-32C interface (pease select), test certificate.

List of options of Yokogawa WT310E Power Meter
